O que é o dinossauro controle remoto e por que ele existe

Remote-controlled dinosaurs exist across a wide range of price points and technologies. Some are basic toys you buy at a big-box store, and some are serious hobby-grade projects with servos, programmable controllers, and custom-coded movement sequences. The term "dinossauro controle remoto" covers all of these, and understanding where your project falls on that spectrum matters more than anything else.

Como funciona um dinossauro controle remoto na prática

At its core, a remote-controlled dinosaur is just a radio receiver connected to an ESC or servo controller, powered by a small LiPo battery, with an IR or 2.4GHz transmitter handling inputs. That's the skeleton. The actual execution is where people get stuck. I built one a few years ago using a second-hand RC transmitter and a handful of Tower Pro SG90 micro servos. The model looked decent on paper. The first time I powered it up, the hip servos started oscillating uncontrollably because I'd wired them in parallel without a proper signal splitter. They fought each other on the same channel. I spent about forty-five minutes debugging before I realized the issue wasn't firmware, it was wiring. A simple Y-splitter cable with isolated signal lines fixed it immediately.

That's the thing nobody tells you about these projects. The hardware is usually fine. The integration between components is where everything breaks.

Componentes necessários para montar ou comprar

Here's what you actually need depending on which direction you go:

Montagem própria (DIY)

You'll need a receiver, a transmitter, servo motors sized for the joint load, a LiPo battery (typically 3S 11.1V for anything medium-to-large), and either a microcontroller like an Arduino or ESP32 if you want programmable gait cycles. For the body, some people use EVA foam, others print parts in PLA with a 3D printer, and a few use resin for finer detail. Budget-wise, a functional build typically lands between R$150 and R$600 depending on quality of components and whether you print or source the shell.

Compra pronta

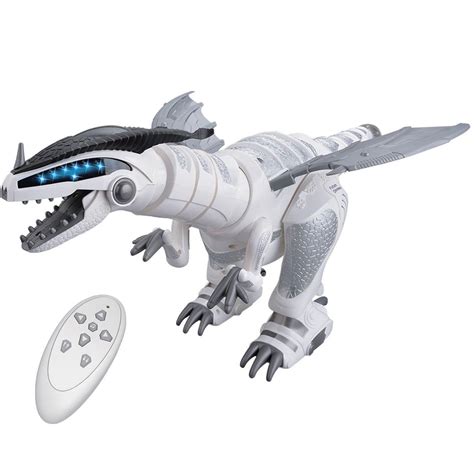

Pre-built remote-controlled dinosaurs are widely available on Amazon Brasil, Shopee, Mercado Livre, and specialized toy retailers. A basic small model runs around R$80 to R$200. A decent medium-sized one with multiple points of articulation costs R$250 to R$500. Higher-end collectible versions can exceed R$1000. The key difference between cheap and expensive isn't just the plastic, it's the receiver quality and servo torque rating. Cheap models use generic receivers that drop signal after about eight meters. Better ones maintain stable connection up to thirty meters or more.

Problemas comuns e como resolver

Signal dropout is the most common complaint. If your dinosaur stops responding mid-movement, check three things: battery voltage (a 3S LiPo drops below 10V under load and the receiver brown-outs), antenna placement on the receiver, and whether there's interference from nearby Wi-Fi routers or fluorescent lights at 2.4GHz. I once spent two hours troubleshooting what I thought was a faulty receiver before moving the setup outside. Indoors, a neighbor's wireless camera was drowning out my signal on the same frequency. Switching to a receiver with diversity antenna input eliminated the problem entirely. Another frequent issue is servo stutter during gait cycles. This usually happens when the power distribution board can't handle the peak current draw of multiple servos moving simultaneously. A single 5V 2A BEC might suffice for two servos, but six or more will cause voltage sag. Adding a separate 5V power regulator or switching to a UBEC rated for at least 5A per channel solves this. I learned this the hard way when my dinosaur's knee servo started making a grinding noise mid-walk. It wasn't mechanical wear. It was undervoltage destroying the gear train over time.

O que os vendedores não contam sobre dinossauro controle remoto

Many pre-built models advertise "walking," "roaring," and "eye-lighting" features. Walking is real. Roaring is a speaker playing a recorded sound effect triggered by an accelerometer. Eye-lighting is an LED strip. None of these are technically difficult, but they also don't indicate anything about the underlying build quality. A dinosaur with a poor receiver and weak servos can still have working lights and sounds. Buy based on the motor and receiver specs, not the gimmicks. Also, battery life is almost always overstated. A manufacturer might claim forty minutes of runtime. In practice, continuous servo movement drains a 1000mAh 3S pack in roughly twenty to twenty-five minutes. If you're doing short bursts, you might stretch it to thirty. Don't expect the full rating.

Alternativas e quando considerar outras opções

If your goal is simply entertainment for a child, a pre-built model from a reputable brand like Bestway or Heng Long is the sensible choice. They're tested, supported, and you won't spend weekends soldering. If your goal is a hobby project or display piece with authentic movement, a DIY approach with an Arduino or Raspberry Pi Pico gives you far more control over gait patterns and responsiveness. There's also a middle ground: buying a used RC airframe or rover chassis and building a custom dinosaur body around it. This is what I ended up doing, and it's significantly faster than starting from scratch.

Conclusão sobre dinossauro controle remoto

The space between a cheap toy and a serious RC build is wider than it appears. Before committing to either path, figure out what you actually want to do with it. Most people overcomplicate the decision because they haven't defined the end goal clearly. If you just want something fun to show off, buy one. If you want to tinker, budget extra time for integration headaches and start with a single axis before adding complexity. The parts are affordable. The knowledge gap is where the real cost lives.
